The TM150 is a transom-mount, single-band CHIRP transducer with a urethane housing for Garmin and Lowrance equipment. It is available in the Medium band only.
The Medium band covers the popular 88 kHz and 107 kHz frequencies for lake fishing.
Specifications
| Feature | Specification |
|---|---|
| Medium Frequency Band | 95-155 kHz |
| Power Rating | 300W RMS |
| Housing | Urethane transom-mount with bracket |
| Beam Widths | 17-26° in Medium band |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with Garmin 8-Pin (-8G) or Lowrance 7-Pin (-BL) connectors |

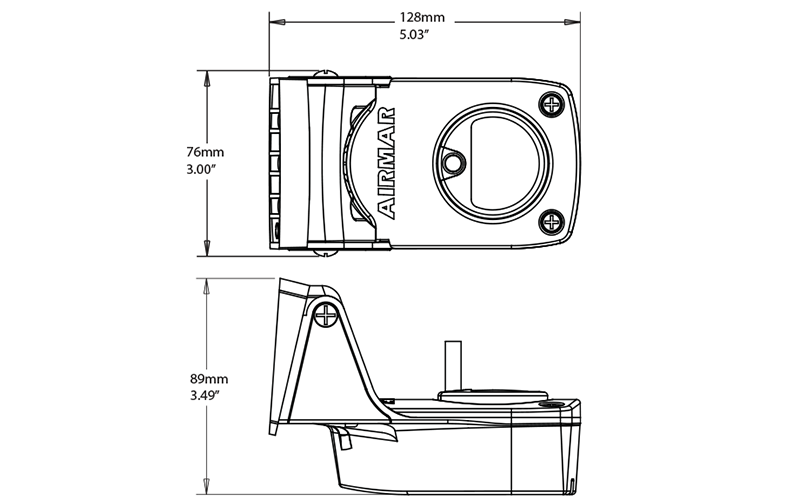

| Overall Height | 89mm (3.49") |
| Overall Width | 76mm (3.00") |
| Overall Length | 128mm (5.03") |
| Recommended Boat Size | Up to 8 meters (25 feet) |
Available Models
| Version Name | Characteristics |
|---|---|
| TM150C-M-8G | Medium frequency band (95-155 kHz) for Garmin 8-Pin (-8G) |
| TM150C-M-BL | Medium frequency band (95-155 kHz) for Lowrance/Simrad 7-Pin (-BL) |
