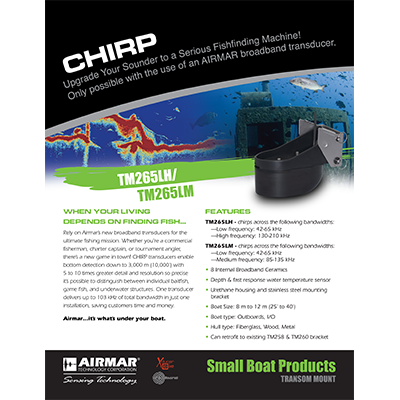

The TM265 is a transom-mount, 1kW, dual-band CHIRP transducer with a stainless steel mounting bracket. It has 8 internal broadband ceramic elements.
It is available in either the Low & Medium or Low & High bands.
The TM265 is the same size as a conventional TM260 transducer and uses the same bracket.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 42-65 kHz |
| Medium Frequency Band | 85-135 kHz |
| High Frequency Band | 130-210 kHz |
| Housing | Urethane housing with a stainless-steel bracket |
| Power Rating | 1kW RMS |
| Active Ceramic Elements | 8 |
| Beam Widths | 16-25° in Low band; 11-16° in Medium band; 6-10° in High band |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |

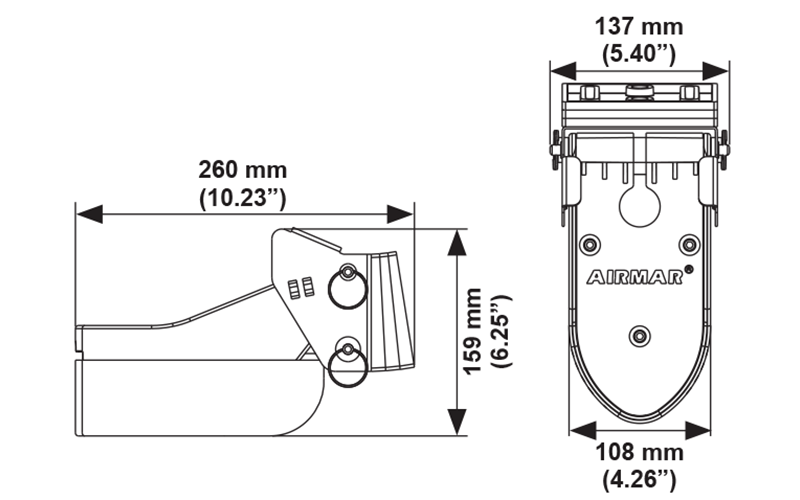

| Overall Height | 159mm (6.25") |
| Overall Width | 137mm (5.40") |
| Overall Depth | 260mm (10.23") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| TM265C-LM | Low (42-65 kHz) and Medium (85-135 kHz) frequency bands |
| TM265C-LH | Low (42-65 kHz) and High (130-210 kHz) frequency bands |
