The TM185 is a large-bodied, transom-mount, single-band CHIRP transducer with a urethane housing and a stainless steel mounting bracket. It is available in either the Medium band or High band with wide beam.
The Medium band covers the popular 88 kHz and 107 kHz frequencies for lake fishing, and the High band covers the popular 200 kHz frequency for salt-water fishing.
The TM185 is the same size as the TM258/TM260 conventional transducers and uses the same stainless steel bracket.
Specifications
| Feature | Specification |
|---|---|
| Medium Frequency Band | 85-135 kHz |
| High Frequency Band - Wide Beam | 150-250 kHz |
| Power Rating | 1kW RMS |
| Housing | Urethane housing with stainless-steel bracket |
| Beam Widths | 11-16° in Medium band; 25° constant in High band with wide beam |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |

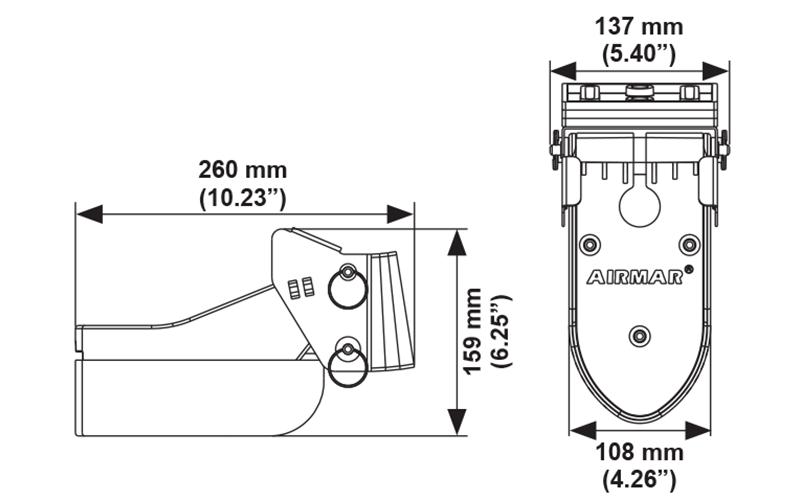

| Overall Height | 159mm (6.25") |
| Overall Width | 108mm (4.26") |
| Overall Length | 260mm (10.23") |
| Recommended Boat Size | 8-12 meters (25-40 feet) |
Available Models
| Version Name | Characteristics |
|---|---|
| TM185C-M | Medium frequency band (85-135 kHz) |
| TM185C-HW | High frequency band (150-250 kHz) with wide beam |
