The R111 is a high-performance, in-hull, dual-band CHIRP transducer with a fiberglass tank. It has 16 internal broadband ceramic elements. The R111 is available in either the Low & Medium bands or Low & High bands.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 38-75 kHz |
| Medium Frequency Band | 80-130 kHz |
| High Frequency Band | 130-210 kHz |
| Housing | Fiberglass tank |
| Power Rating | 2 kW |
| Active Ceramic Elements | 16 |
| Beam Widths | 10-19° in Low band; 8-13° in Medium band; 4-8° in High band |
| Temperature Sensor | This transducer has no temperature sensor |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |
| Hull Material | Solid fiberglass only |

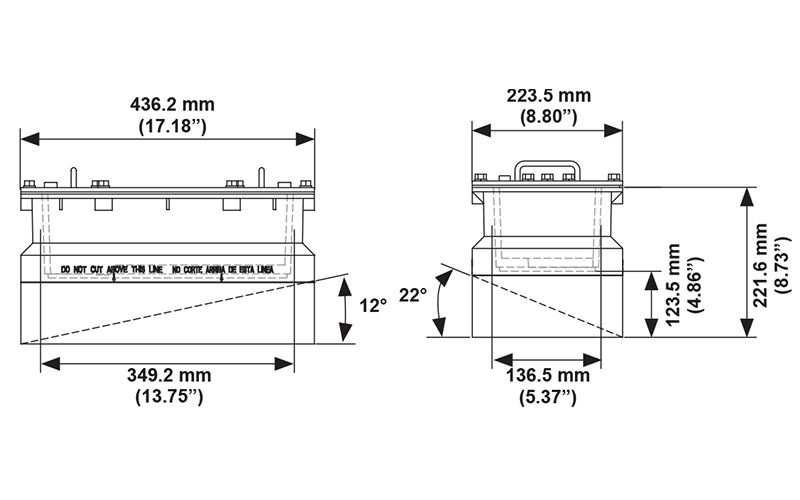

| Overall Height | 222mm (8.73") |
| Overall Width | 436mm (17.18") |
| Overall Depth | 224mm (8.80") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| R111C-LM | Low (38-75 kHz) and Medium (80-130 kHz) bands |
| R111C-LH | Low (38-75 kHz) and High (130-210 kHz) bands |
