The PM411 is a high-performance, 2kW, pocket/keel mount, dual-band CHIRP transducer in a urethane housing. It has 16 internal broadband ceramic elements. The PM111 is available only in the Low & Medium bands with an ultra-wide beam.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 40-60 kHz |
| Medium Frequency Band | 80-130 kHz |
| Housing | Urethane pocket/keel mount |
| Active Ceramic Elements | 16 |
| Beam Widths | 40° in Low band; 8-13° in Medium band |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |
| Hull Material | Fiberglass only |

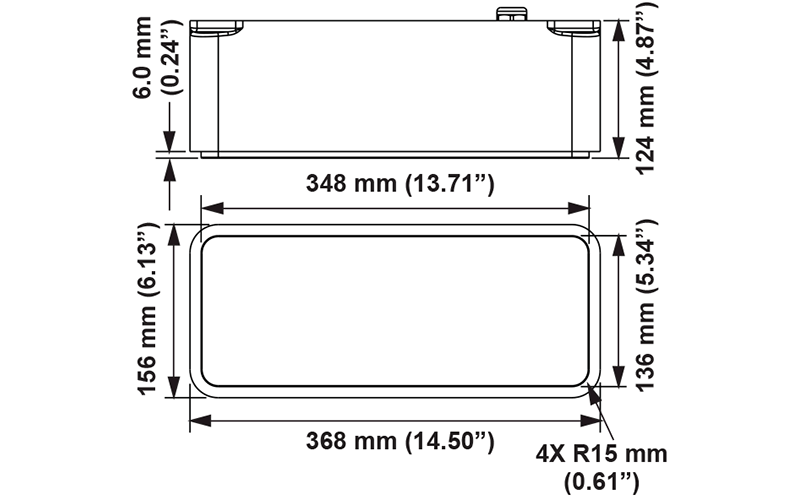

| Overall Height | 124mm (4.87") |
| Overall Width | 368mm (14.50") |
| Overall Depth | 136mm (5.34") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| PM411LWM | Low (40-60 kHz) and Medium (80-130 kHz) bands |
