The M265 is an in-hull, 1kW, dual-band CHIRP transducer with a fiberglass tank. It has 8 internal ceramic elements. The M265 is available in either the Low & Medium bands or Low & High bands.
The M265 is the same size as a conventional M260 transducer and uses the same tank.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 42-65 kHz |
| Medium Frequency Band | 85-135 kHz |
| High Frequency Band | 130-210 kHz |
| Housing | Fiberglass tank |
| Power Rating | 1kW RMS |
| Active Ceramic Elements | 8 |
| Beam Widths | 16-25° in Low band; 11-16° in Medium band; 6-10° in High band |
| Temperature Sensor | This transducer has no temperature sensor |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |
| Hull Material | Solid fiberglass hulls only |

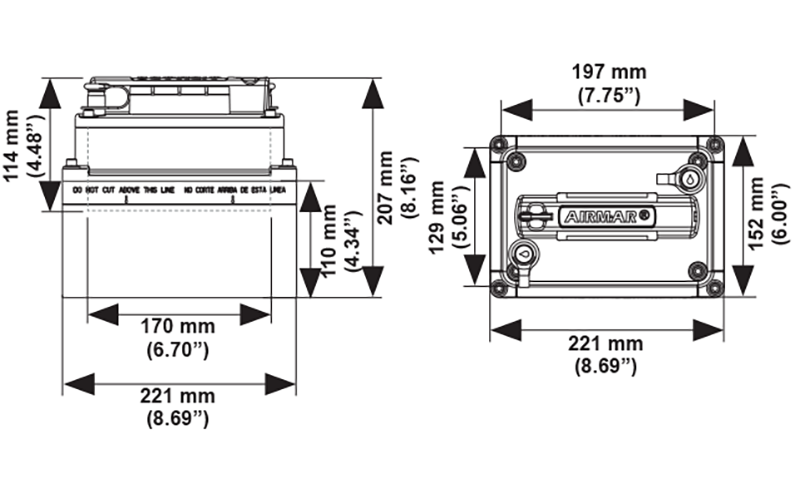

| Overall Height | 207mm (8.16") |
| Overall Width | 152mm (6.00") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| M265C-LM | Low (42-65 kHz) and Medium (85-135 kHz) frequency bands |
| M265C-LH | Low (42-65 kHz) and High (130-210 kHz) frequency bands |
