The Garmin GT50M-TM is a transom-mount combined DownVü and SideVü CHIRP 500W transducer operating at 455kHz and 800kHz.
This model also acts as a standard CHIRP 300W transducer in the Medium band at 80-160kHz.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 010-01965-01 |
| DownVü and SideVü CHIRP Frequency Bands | 425-485 kHz; 790-850 kHz |
| Standard CHIRP Frequencies | Medium Band 80-160kHz |
| Power Rating | 500W RMS DownVü and SideVü CHIRP; 300W RMS Standard CHIRP |

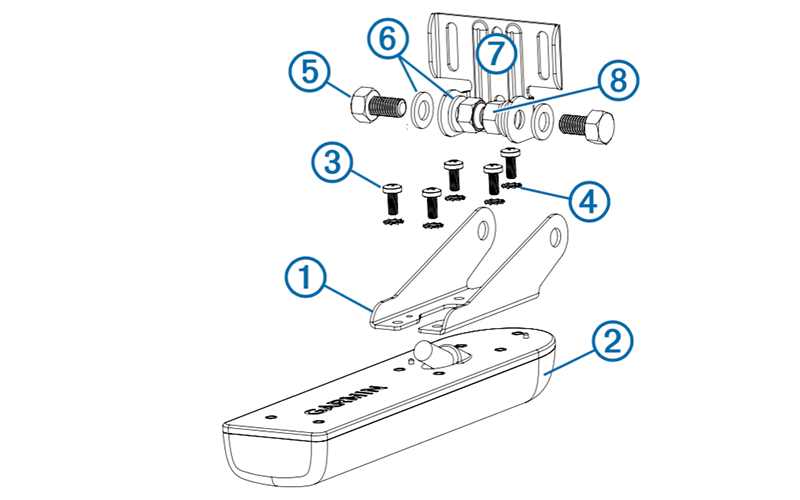

| Housing | Transom mount, for transom angles from 0-70° |
| Beam Width | 1.1°x53° @ 455kHz; 0.7°x30° @ 800kHz; 15-26° in Medium band |
| Temperature Sensor | Integrated into transducer |
| Transducer Cable | 30 ft with Garmin orange 12-Pin connector |
| Hole Size | Holes needed for bolts, transducer cable |
| Weight | 1.03kg (2.06lb) |
| Overall Height | 62mm (2.5") |
| Overall Length | 228mm (9.0") |
| Hull Material | Any |
