The Garmin GT50M-THP is a pair of GT50-TH transducers with an interconnect cable.
Each GT50M-TH is a thru-hull combined DownVü and SideVü CHIRP transducer with a 500W power rating. They operate in the 455 kHz and 800 kHz bands.
These models also act as a standard 300W CHIRP transducer in the Medium band (80-160kHz).
A fairing is supplied and this can be cut to match the hull contours and deadrise to ensure the beam faces downwards. One unit is installed each side of the centerline.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 010-01965-11 |
| DownVü and SideVü CHIRP Frequency Bands | 425-485 kHz; 790-850 kHz |
| Standard CHIRP Frequencies | Medium 80-160 kHz |
| Power Rating | 500W RMS DownVü/SideVü; 300W RMS standard CHIRP |

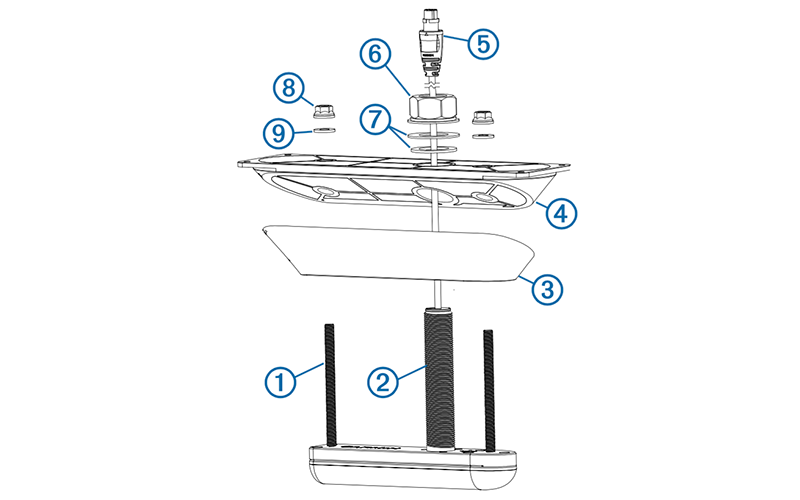

| Housing | Thru-hull with adjustable external fairing |
| Beam Width | 1.1°x53° @ 455kHz; 0.7°x30° @ 800kHz; 15-26° @ 80-160kHz |
| Temperature Sensor | Integrated into transducer |
| Transducer Cable | 5ft interconnect; 30 ft with Garmin orange 12-Pin connector |
| Hole Size | Holes needed for transducer stem, alignment bolts |
| Weight | 3.80kg (8.36lb) combined |
| Overall Height | 116mm (4.6") each |
| Overall Length | 323mm (12.7") each |
| Hull Material | Any |
