The Garmin GT50M-TH is a thru-hull combined DownVü and SideVü CHIRP transducer with a 500W power rating. It operates in the 455 kHz and 800 kHz bands.
This model also acts as a standard 300W CHIRP transducer in the Medium band (80-160kHz).

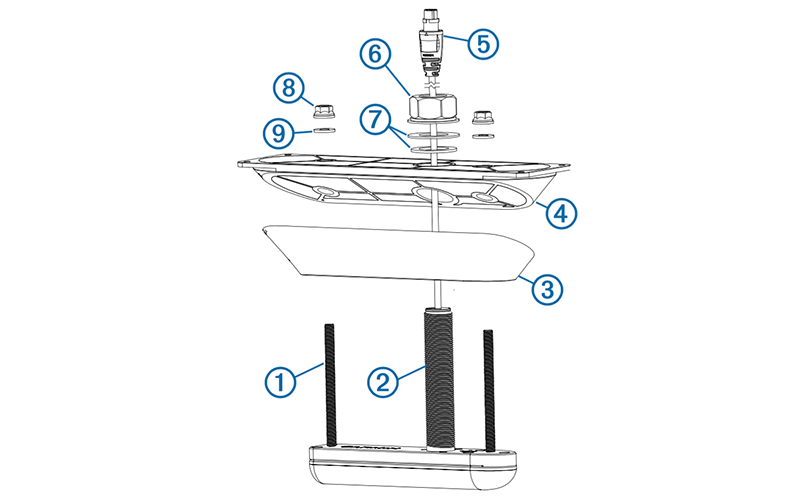

A fairing is supplied and this can be cut to match the hull contours and deadrise to ensure the beam faces downwards.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 010-01965-10 |
| DownVü and SideVü CHIRP Frequency Bands | 425-485 kHz; 790-850 kHz |
| Standard CHIRP Frequencies | Medium 80-160 kHz |
| Power Rating | 500W RMS DownVü/SideVü; 300W RMS standard CHIRP |
| Housing | Thru-hull with adjustable external fairing |
| Beam Width | 1.1°x53° @ 455kHz; 0.7°x30° @ 800kHz; 15-26° @ 80-160kHz |
| Temperature Sensor | Integrated into transducer |
| Transducer Cable | 30 ft with Garmin orange 12-Pin connector |
| Hole Size | Holes needed for transducer stem, alignment bolts |
| Weight | 1.94kg (4.27lb) |
| Overall Height | 116mm (4.6") |
| Overall Length | 323mm (12.7") |
| Hull Material | Any |
