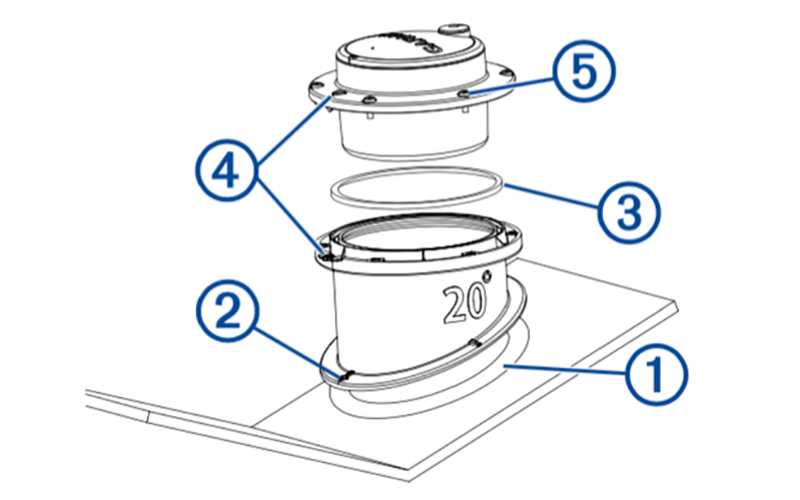

The Garmin GT15M-IH is an in-hull, single-band CHIRP transducer with a 600W power rating that operates in the medium band (85-165 kHz). It ships with four plastic tanks so that the user can choose the correct one for hull deadrise angles between 0° and 25°.
This transducer is for solid fiberglass hulls only. Cored hulls will degrade the signal. The GT15M-IH does not have a temperature sensor.
Specifications
| Feature | Specification |
|---|---|
| Part Number | 010-12402-00 |
| Frequency Band | Medium 85-165 kHz |
| Power Rating | 600W RMS |
| Housing | In-hull, mounted in supplied tank with 0°, 5°, 12° or 20° tilt. |
| Beam Width | 13-24° |
| Temperature Sensor | Not included |
| Transducer Cable | 20 ft with Garmin blue 8-Pin connector |
| Hole Size | No hole needed in hull |
| Weight | 450g (1.00 lb) with empty tank |
| Overall Height | 86.5mm with largest tank (3.41") |
| Overall Width | 94mm (3.71") |
| Hull Material | Solid fiberglass only |
