The Raymarine CPT-200 is a urethane, transom-mount SideVision CHIRP transducer.
It operates with two side-to-side CHIRP beams that are wide in the port-starboard dimension but thin fore-aft.
This transducer is for use with SideVision sonar modules such as the CP200.
Specifications
| Feature | Specification |
|---|---|
| Part Number | A80281 |
| Frequency Bands | Standard CHIRP 200kHz band; DownVision CHIRP 350kHz band |
| Beam Width | Standard CHIRP 25° |
| Temperature Sensor | Built in |
| Transducer Cable | 10 meters (32.8 feet) |
| Mounting | Transom-mount with stainless steel bracket |
| Hull Material | Fiberglass, wood or metal |

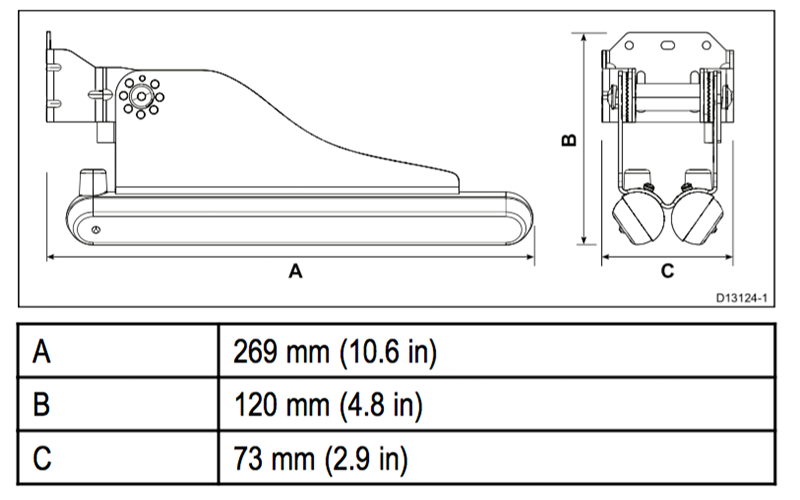

| Overall Height | 120mm (4.8") |
| Overall Length | 269mm (10.6") |
| Weight | 1.03 kg (2.3 lbs) |
| Compatibility | CP200 |
