The CM265 is a wet-box/tank mount, dual-band CHIRP transducer in a urethane housing. It has 8 internal broadband ceramic elements. The CM265 is available in either the Low & Medium bands or Low & High bands.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 42-65 kHz |
| Medium Frequency Band | 85-135 kHz |
| High Frequency Band | 130-210 kHz |
| Housing | Urethane wet-box/tank-mount |
| Active Ceramic Elements | 8 |
| Beam Widths | 16-25° in Low band; 11-16° in Medium band; 6-10° in High band |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |
| Hull Material | Fiberglass only |

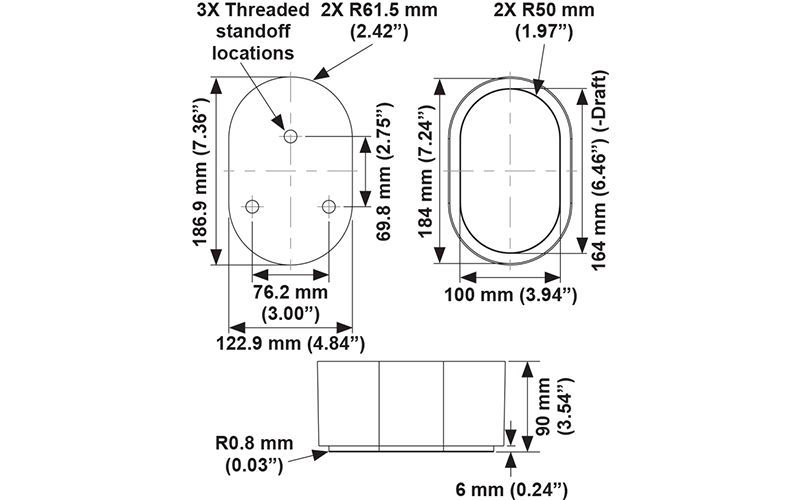

| Overall Height | 90mm (3.54") |
| Overall Width | 184mm (7.24") |
| Overall Depth | 123mm (4.84") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| CM265C-LM | Low (42-65 kHz) and Medium (85-135 kHz) bands |
| CM265C-LH | Low (42-65 kHz) and High (130-210 kHz) bands |
