The B75 and SS75 are low-profile, through-hull, single band CHIRP transducers. They are available in the High band, Medium band or Low band
and in three levels of tilt (0°, 12° and 20°) to compensate for hull deadrise. The B75 and SS75 contain one single ceramic assembly, and a fast-response water temperature sensor.
The Low band covers the popular 50 kHz frequency for deeper water, the Medium band covers the popular 88 kHz and 107 kHz frequencies for lake fishing, and the High band covers the popular 200 kHz frequency for salt-water fishing.
The B75 has a bronze housing and the SS75 has a stainless steel housing. They are otherwise identical.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 40-75 kHz |
| Medium Frequency Band | 80-130 kHz |
| High Frequency Band | 130-210 kHz |
| Power Rating | 300W/600W RMS |
| Housing | Through-hull, low-profile, bronze or stainless housing with 0°, 12° or 20° tilt |
| Beam Widths | 21-32° in Low band; 16-24° in Medium band; 9-15° in High band |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connector |
| Hole Size | Mounting hole diameter is 70mm (2 13/16") |

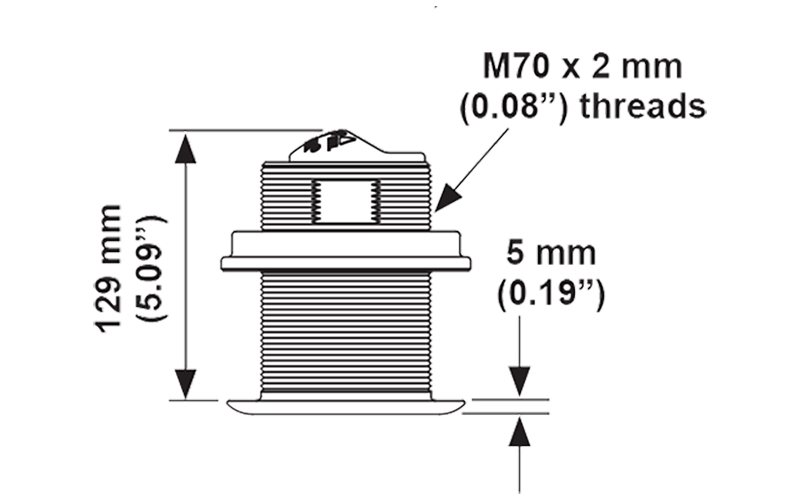

| Overall Height | 129mm (5.09") |
| Overall Width | 94mm (3.71") |
| Recommended Boat Size | Up to 8 meters (25 feet) |
Available Models
| Version Name | Characteristics |
|---|---|
| B75C-0-L | Low frequency band (40-75 kHz) with 0° tilt |
| B75C-0-M | Medium frequency band (80-130 kHz) with 0° tilt |
| B75C-0-H | High frequency band (130-210 kHz) with 0° tilt |
| B75C-12-L | Low frequency band (40-75 kHz) with 12° tilt |
| B75C-12-M | Medium frequency band (80-130 kHz) with 12° tilt |
| B75C-12-H | High frequency band (130-210 kHz) with 12° tilt |
| -- | Airmar does not make the B75 in the Low frequency band with 20° tilt |
| B75C-20-M | Medium frequency band (80-130 kHz) with 20° tilt |
| B75C-20-H | High frequency band (130-210 kHz) with 20° tilt |
| SS75C-0-L | Low frequency band (40-75 kHz) with 0° tilt |
| SS75C-0-M | Medium frequency band (80-130 kHz) with 0° tilt |
| SS75C-0-H | High frequency band (130-210 kHz) with 0° tilt |
| SS75C-12-L | Low frequency band (40-75 kHz) with 12° tilt |
| SS75C-12-M | Medium frequency band (80-130 kHz) with 12° tilt |
| SS75C-12-H | High frequency band (130-210 kHz) with 12° tilt |
| -- | Airmar does not make the SS75 in the Low frequency band with 20° tilt |
| SS75C-20-M | Medium frequency band (80-130 kHz) with 20° tilt |
| SS75C-20-H | High frequency band (130-210 kHz) with 20° tilt |
