The B285 is a through-hull, single-band CHIRP transducer with a bronze block and plastic fairing. It is available in either the Medium band or High band with wide beam.
The Medium band covers the popular 88 kHz and 107 kHz frequencies for lake fishing, and the High band covers the popular 200 kHz frequency for salt-water fishing.
The B285 is the same size as the conventional B258 transducer.
Specifications
| Feature | Specification |
|---|---|
| Medium Frequency Band | 85-135 kHz |
| High Frequency Band - Wide Beam | 150-250 kHz |
| Housing | Through-hull bronze block with plastic fairing |
| Power Rating | 1kW RMS |
| Beam Widths | 11-16° in Medium band; 25° constant in High band with wide beam |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |

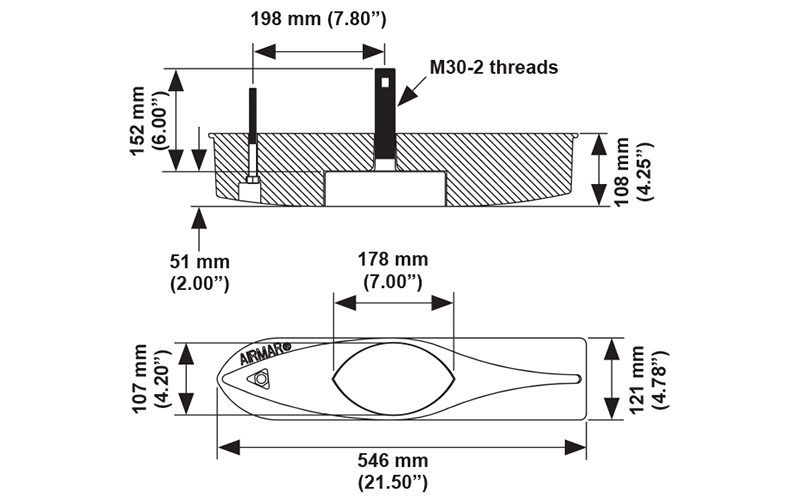

| Hole Size | Mounting hole diameter is 30mm (1.18"), plus a hole for the fairing retainer bolt |
| Overall Height | 203mm (8") |
| Fairing Size | 121mm (4.78") x 546mm (21.50") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| B285C-M | Medium frequency band (85-135 kHz) |
| B285C-HW | High frequency band (150-250 kHz) with wide beam |
