The B265 is a through-hull, 1kW, dual-band CHIRP transducer with a bronze block and plastic fairing. It is available in either the Low & Medium bands or Low & High bands.
The B265 is the same size as a conventional B260 transducer.
Specifications
| Feature | Specification |
|---|---|
| Low Frequency Band | 42-65 kHz |
| Medium Frequency Band | 85-135 kHz |
| High Frequency Band | 130-210 kHz |
| Housing | Through-hull bronze block with plastic fairing |
| Power Rating | 1kW RMS |
| Active Ceramic Elements | 8 |
| Beam Widths | 16-25° in Low band; 11-16° in Medium band; 6-10° in High band |
| Temperature Sensor | Integrated sensor in transducer body |
| Transducer Cable | 10 meters (32.8 feet) with bare wire connection |

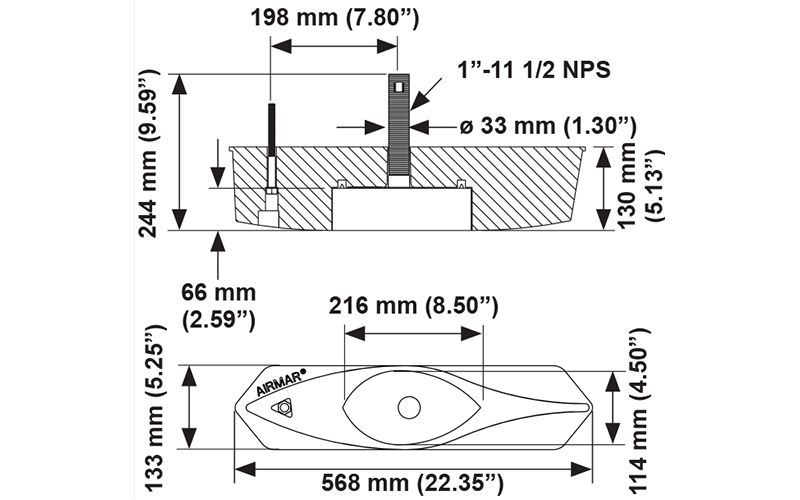

| Hole Size | Mounting hole diameter is 33mm (1.30"), plus a hole for the fairing retainer bolt |
| Overall Height | 244mm (9.59") |
| Fairing Size | 133mm (5.25") x 568mm (22.35") |
| Recommended Boat Size | 9 meters (30 feet) and larger |
Available Models
| Version Name | Characteristics |
|---|---|
| B265C-LM | Low (42-65 kHz) and Medium (85-135 kHz) frequency bands |
| B265C-LH | Low (42-65 kHz) and High (130-210 kHz) frequency bands |
